Founded in 2011, KeyPair was the first company in Korea to obtain firmware-based KCMVP certification in 2018. Since then, it has been supplying KCMVP security chips to the Korean Electric Power and defense sectors.

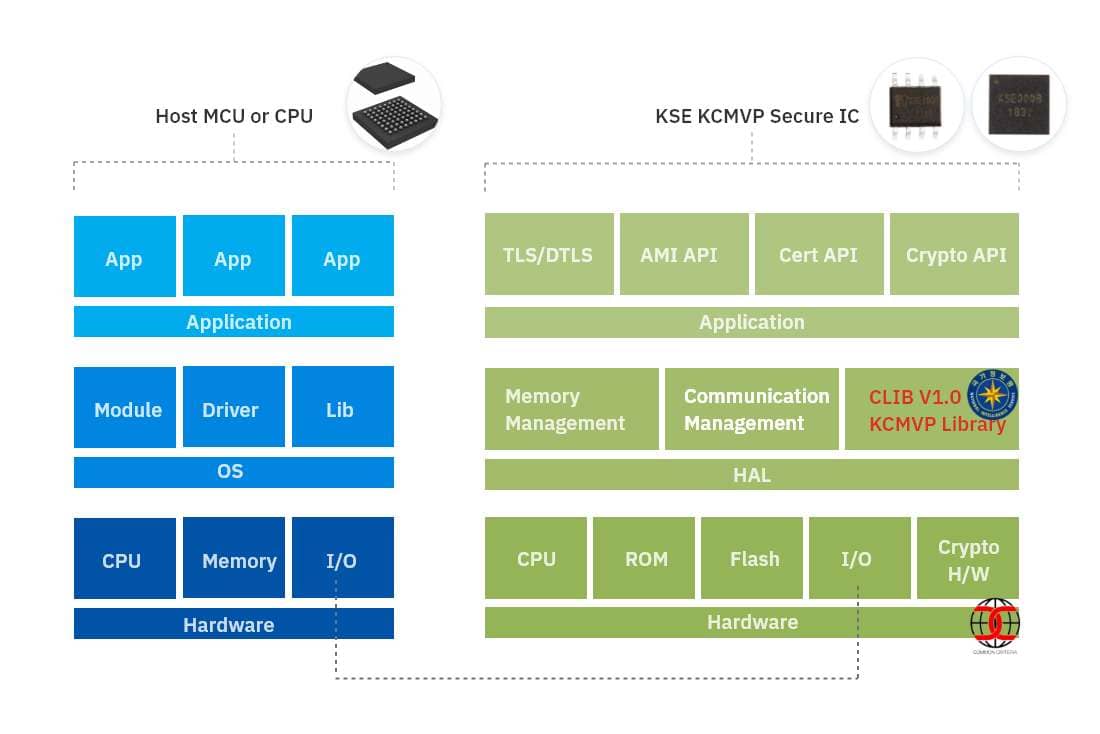

KSE Series operates with KCMVP certified crypto module (CLIB V1.0) as firmware on top of CC certified security chip. The encryption key is securely stored in the Secure Memory inside the Secure Chip. The cryptographic algorithm operation is performed safely inside the secure chip, and the cryptographic key is not exposed outside the secure chip. Various applications such as Crypto API and TLS/DTLS are mounted in the application area. It communicates with the host CPU through the I/O interface.

* KCMVP – Korea Cryptographic Module Validation Program

* CC – Common Criteria

KCMVP Certification security chip

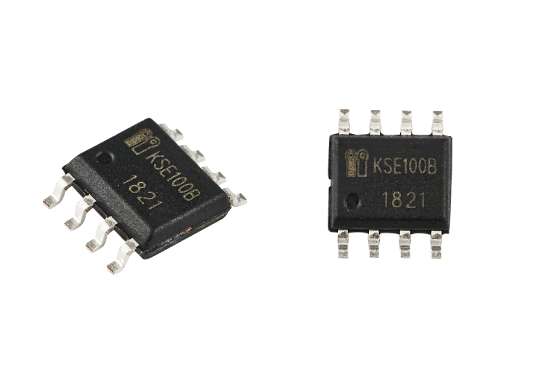

• KSE100B
  • CPU : 16bit RISC
  • Memory : RAM – 6KB, Flash – 200KB
  • Interface : ISO-7816
  • Package : SOP-8, 5mm(W) x 6mm(D) x 1.6mm(H)
  • Operating Voltage : 1.62V ~ 5.5V
  • Certification : KCMVP (Verification Number: CM-144-2023.10), CC (Common Criteria)

KCMVP Certification security chip

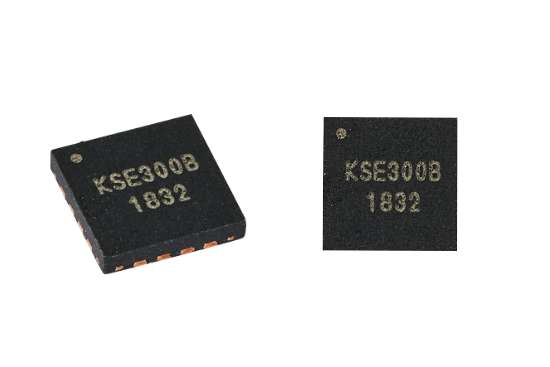

• KSE300B
  • CPU : 32bit RISC
  • Memory : RAM – 48KB, Flash – 2000KB
  • Interface : SPI
  • Package : QFN-16, 4mm(W) x 4mm(D) x 0.8mm(H)
  • Operating Voltage : 1.62V ~ 5.5V
  • Certification : KCMVP (Verification Number: CM-144-2023.10), CC (Common Criteria)

KCMVP Certification USB Dongle

• KSE300U
  • CPU : 32bit RISC
  • OS : Windows10, Linux
  • Interface : USB (Full Speed)
  • Package : 61mm(W) x 22mm(D) x 9mm(H)
  • Operating Voltage : 5.0V (USB Power)
  • Certification : KCMVP (Verification Number: CM-144-2023.10), CC (Common Criteria)
